Small-arc observation for plasma welding

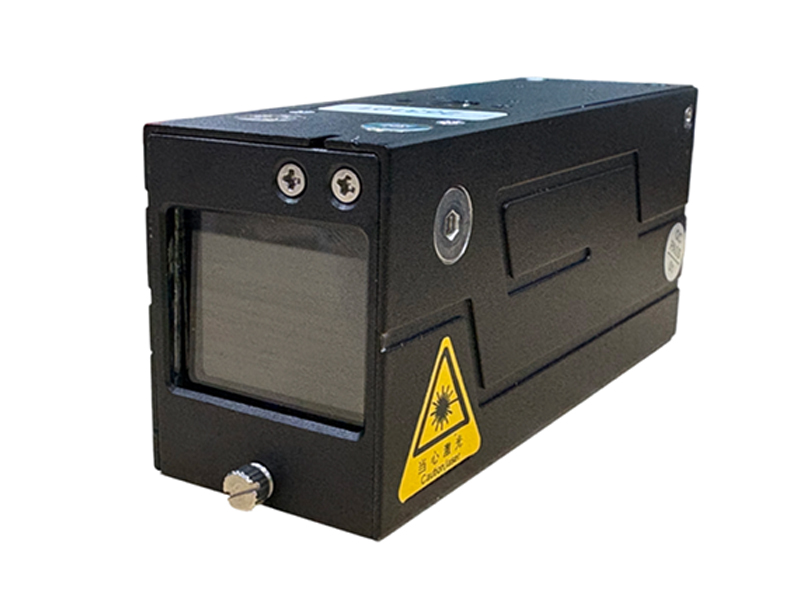

Plasma Welding Camera for Small-Arc Observation
Specialized Welding Vision Camera
A specialized camera for observing small arcs, checking seam alignment and monitoring plasma welding processes.
Application
Plasma arc welding
Core focus
Small-arc visibility
Imaging
Adaptive adjustment
Best for
Seam alignment
Technical product detail
The complete product story, from integration to service.
The supplied product material is presented here for engineering teams, system integrators and industrial customers.

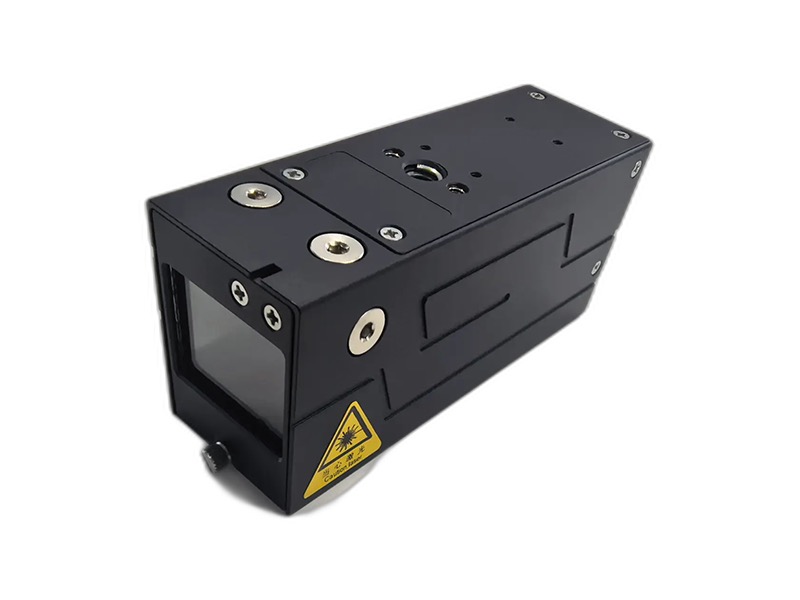

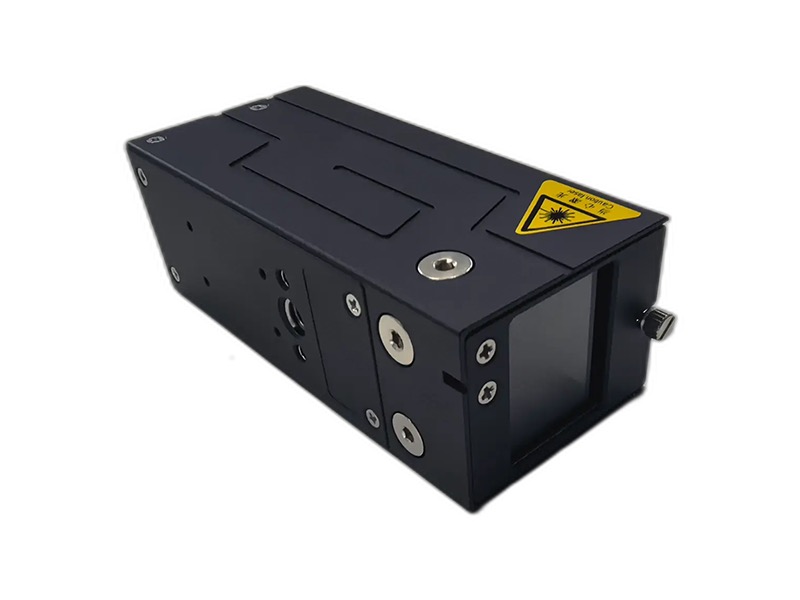

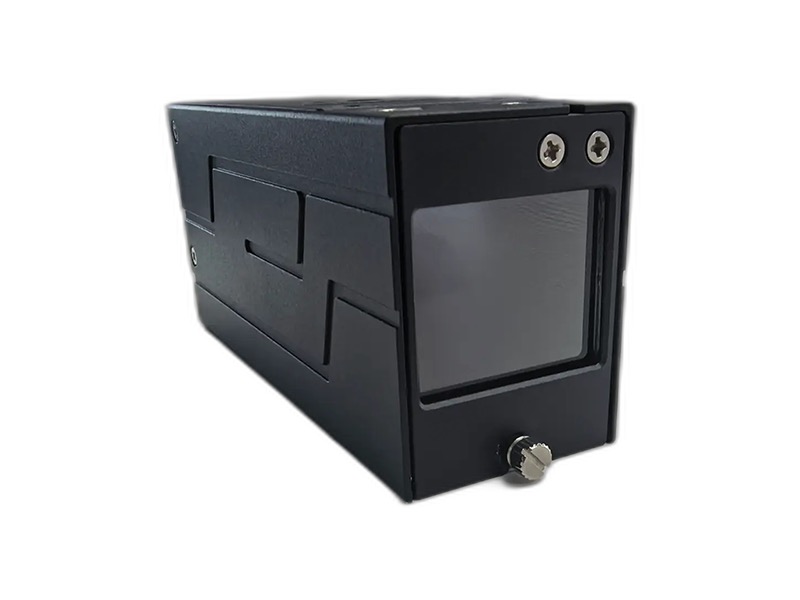

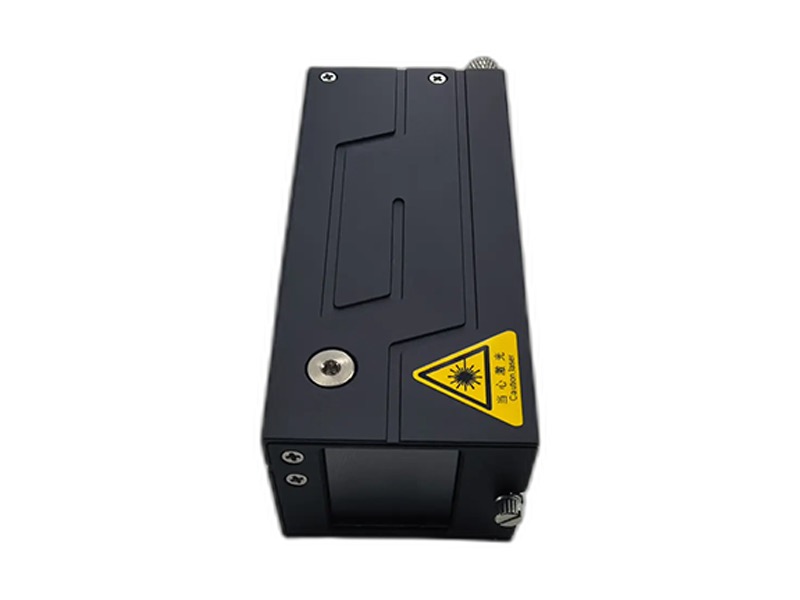

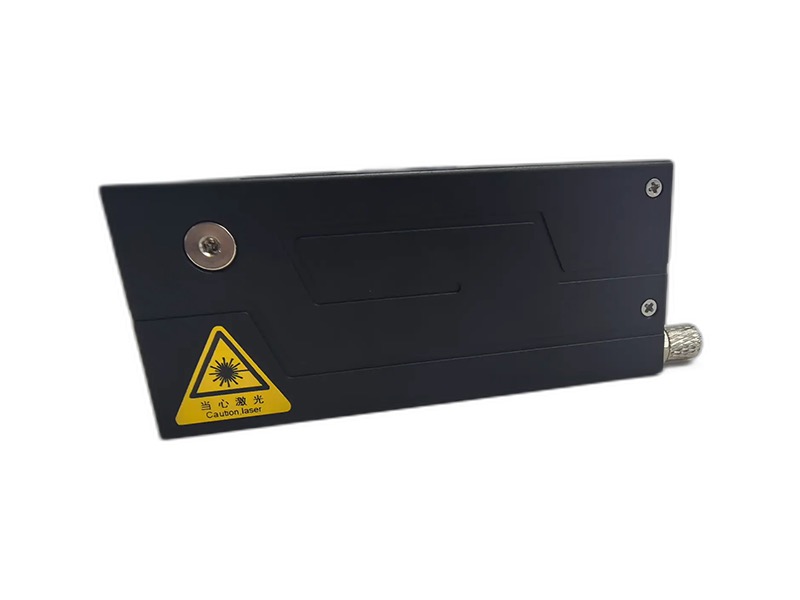

NXHY plasma welding camera small-arc Observation Camera for Plasma Welding Process Monitoring
Product Summary
NXHY plasma welding camera is a specialized welding vision solution developed by NXHY for plasma welding applications, especially designed for observing tiny arc characteristics during tungsten-free pulse welding. Unlike conventional welding monitoring cameras that may filter out small positioning arcs, this plasma welding camera adopts intelligent algorithm adjustment technology to automatically optimize imaging parameters according to arc size, ensuring clear observation of the welding environment and seam alignment process. NXHY provides professional Plasma Arc welding camera solutions for welding equipment manufacturers, automation companies, and industrial customers worldwide.
1. Product Introduction of NXHY Plasma Welding Camera
The NXHY plasma welding camera is a professional industrial vision camera specially developed for plasma welding process monitoring. Plasma welding is widely used in precision manufacturing fields due to its high energy density, stable welding performance, and excellent welding quality requirements. However, during the initial stage of tungsten-free pulse welding, the tiny arc used for positioning can be difficult to observe with traditional welding cameras because of strong welding light interference.
The NXHY plasma welding camera solves this challenge by using intelligent image processing technology. The camera can automatically adjust its algorithm according to the size and characteristics of the arc, allowing users to observe the welding environment while maintaining visibility of the small-arc required for positioning and alignment.
Compared with standard welding monitoring cameras, the NXHY plasma welding camera is optimized for special plasma welding applications where accurate arc observation and weld seam alignment are critical. It helps operators and engineers confirm whether the welding torch is correctly aligned with the weld seam before and during welding operations.
Based on the imaging technology of the NXHY Arc Eye 3.0 series, the plasma welding camera provides excellent image quality, reliable performance, and practical industrial usability. The camera inherits the stable imaging capability of the Arc Eye series while adding specialized optical algorithms for plasma welding environments.
The NXHY plasma welding camera is an ideal solution for customers who require accurate welding positioning, real-time welding process observation, and improved welding quality control in precision manufacturing applications.
2. Product Parameter of NXHY Plasma Welding Camera
| Item | Specification |
|---|---|
| Product Name | NXHY plasma welding camera |
| Product Type | Specialized welding vision camera |
| Application | Plasma welding monitoring |
| Welding Process | Plasma Arc Welding / tungsten-free Pulse Welding |
| Main Function | small-arc Observation and Welding Seam Alignment |
| Imaging Technology | Intelligent Algorithm Adjustment |
| Arc Processing | Automatic Adjustment According to Arc Size |
| Image Quality | Same Imaging Performance as Arc Eye 3.0 Series |
| Application Mode | real-time Welding Process Observation |
| Target Users | Welding Equipment Manufacturers, Automation Integrators, Industrial Users |
3. Product Feature And Application of NXHY Plasma Welding Camera
small-arc Observation Technology
The biggest advantage of the NXHY plasma welding camera is its ability to observe tiny arcs during the beginning stage of tungsten-free pulse welding.
In many traditional welding monitoring systems, strong arc light filtering technology may remove important small-arc information together with unnecessary light interference. However, the plasma welding camera uses intelligent algorithm adjustment to balance image clarity and arc visibility.
This allows engineers to clearly observe whether the welding position is aligned with the weld seam, improving welding accuracy and reducing positioning errors.
Intelligent Algorithm Adjustment
The NXHY plasma welding camera automatically adjusts imaging algorithms according to different arc sizes and welding conditions.
This intelligent adjustment technology helps maintain a clear welding environment observation without losing the small positioning arc information required for accurate welding alignment.
Industrial Welding Applications
The Plasma Arc welding camera is suitable for applications including:
Plasma arc welding monitoring
tungsten-free pulse welding observation
Precision welding positioning
Automated welding systems
Welding process research
Welding equipment development
The camera provides valuable visual information for engineers who need accurate control of welding position and process stability.
4. Product Details of NXHY Plasma Welding Camera
Specialized Optical Algorithm
The NXHY plasma welding camera is designed differently from standard welding cameras. Its image processing algorithm is optimized for plasma welding environments, allowing the camera to handle complex arc conditions.
The algorithm automatically adjusts according to arc intensity, ensuring that important welding details remain visible.
Arc Eye 3.0 Series Imaging Performance
The plasma welding camera inherits the imaging advantages of the NXHY Arc Eye 3.0 series.
It provides:
Clear welding images
Stable imaging performance
Reliable industrial operation
real-time welding process observation
This allows customers to enjoy proven NXHY welding vision technology while obtaining specialized plasma welding monitoring capability.
Accurate Welding Seam Alignment
For precision welding applications, correct welding torch positioning is extremely important.
The NXHY plasma welding camera helps users observe the relationship between the arc position and weld seam, making it easier to adjust welding alignment and improve welding consistency.
Comparison With Conventional welding cameras
| Conventional welding camera | NXHY plasma welding camera |
|---|---|
| Strong filtering may remove small-arc information | Maintains visibility of positioning small-arc |
| Designed for general welding monitoring | Optimized for plasma welding applications |
| Limited arc positioning observation | Supports welding seam alignment observation |
| Standard image processing | Intelligent adaptive algorithm |
5. Product Qualification of NXHY Plasma Welding Camera
NXHY is a professional welding camera manufacturer specializing in industrial welding vision technology. The NXHY plasma welding camera is developed through strict engineering testing and quality control procedures to ensure reliable performance in demanding welding environments.
6. Delivery Shipping And Service of NXHY Plasma Welding Camera
NXHY provides complete support for global customers purchasing the plasma welding camera, including application consultation, technical communication, customized solutions, and after-sales service.
Before delivery, each camera is carefully inspected and securely packaged to ensure safe international transportation.
Our services include:
Pre-sales Support
Welding application analysis
Product recommendation
Technical consultation
During-sales Support
Customized solution design
Technical communication
Product testing support
After-sales Support
Installation guidance
Remote technical assistance
Long-term technical support
NXHY is committed to providing reliable welding vision camera solutions and building long-term partnerships with customers worldwide.
7. FAQ
Plasma welding equipment manufacturers
Welding automation companies
Industrial system integrators
Precision manufacturing companies
Welding research institutions
The NXHY plasma welding camera is specially designed for plasma welding and plasma arc welding applications, especially tungsten-free pulse welding process monitoring.
Yes. The plasma welding camera is designed to observe the tiny arc at the beginning stage of tungsten-free pulse welding, helping users check welding seam alignment.
The camera uses intelligent algorithm adjustment technology to automatically optimize imaging parameters according to arc size, maintaining welding environment visibility while preserving important small-arc information.
The NXHY plasma welding camera inherits the imaging performance of Arc Eye 3.0 but adds specialized algorithm optimization for plasma welding small-arc observation.
The camera is suitable for:
8. Company Introduction
NXHY (Nanjing Nanxuan Huaya Technology Co., Ltd.) is a professional manufacturer specializing in welding cameras, welding vision systems, and industrial welding monitoring solutions.
With strong experience in optical imaging technology and welding applications, NXHY develops advanced products to help global customers improve welding visibility, process control, and manufacturing efficiency.
Our product portfolio includes direct-view welding cameras, software-integrated welding vision cameras, and specialized welding monitoring solutions such as the NXHY plasma welding camera.
NXHY provides complete support including product customization, technical consultation, application solutions, and after-sales service. We work closely with welding equipment manufacturers, automation companies, and industrial customers to create reliable and intelligent welding vision solutions.
