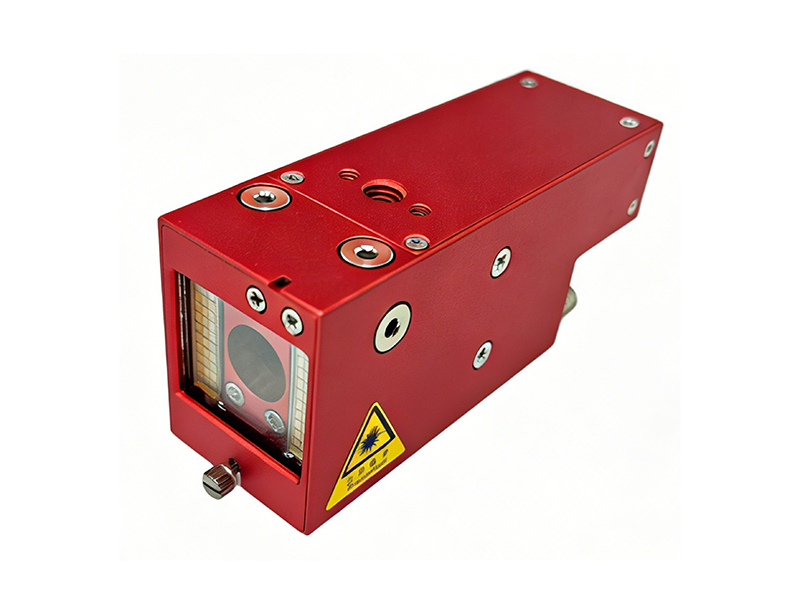

Flame Vision 4.0U USB Welding Vision Camera
USB Welding Vision Camera
A compact USB welding camera with software control, recording, playback and secondary development support.
Connection
USB
Control
Software control
Recording
Local storage and playback
Best for
Software integration and flexible development
Product video
Flame Vision 4.0U in the welding process
Review software-integrated welding vision inside an automated process.
Technical data
Detailed product parameters.
| Model | HT4-24V-200U |
|---|---|
| Pixel Size | 3.45μm×3.45μm |
| Resolution | 1440 × 1080 |
| Maximum Frame Rate | 200fps |
| Dynamic Range | 71.1dB |
| Gain | 0-17 |
| Monochrome/Color | Monochrome |
| Working Distance | 200-450mm Adjustable (Standard 220mm) |
| Overall Dimension | 99.8mm*34mm*44mm |
| Weight | 279g |
| Operating Temperature | -30-60℃ |

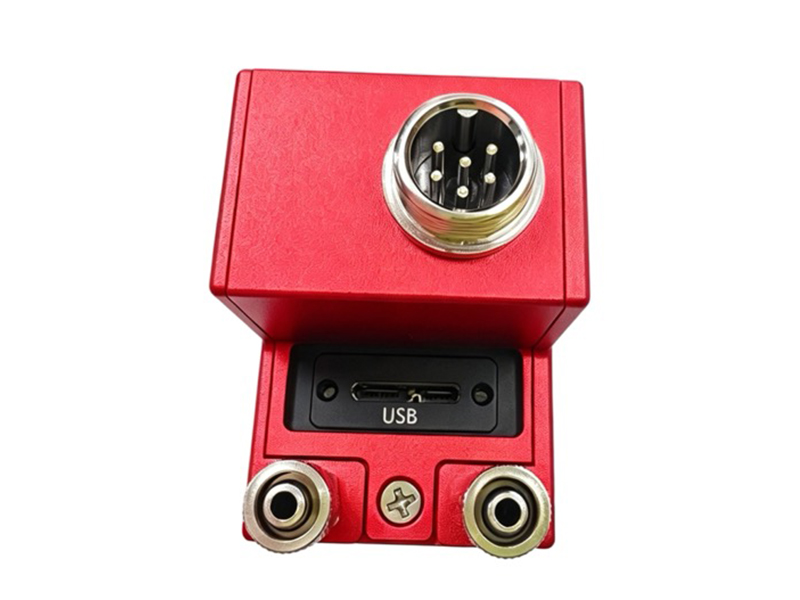

| Data Interface | USB 3.0 |
| Power Interface | 6-pin Connector |
| Operating Voltage | 24V |
| Current | 3A |
| Secondary Development | Supported |
| AI Application | Supported |
