Real-time molten pool observation

Arc Eye 3.0 Direct-View Welding Camera

Direct View Welding Camera

A plug-and-play welding camera for direct observation without software installation.

Request a QuoteView technical data

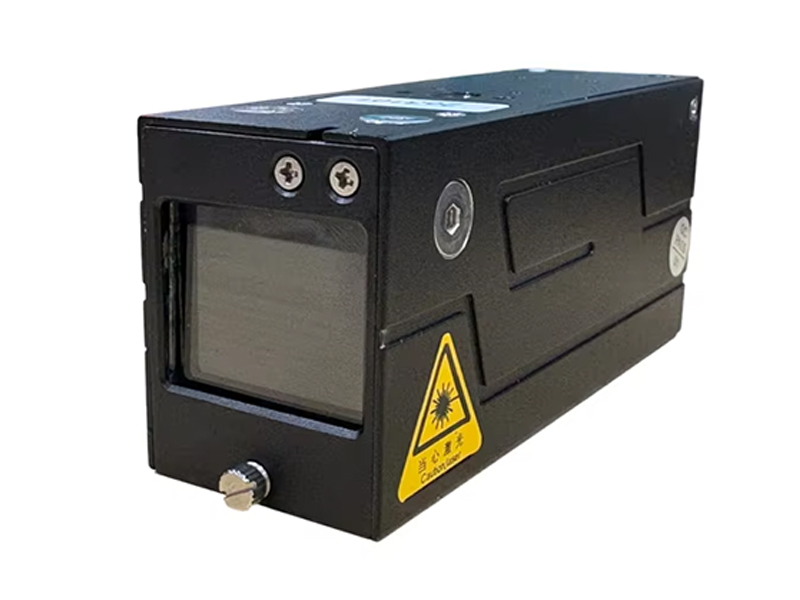

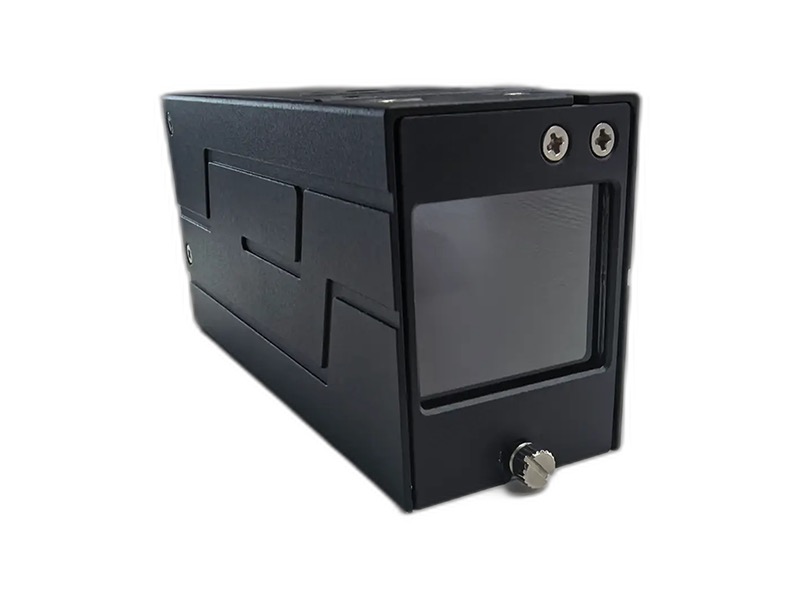

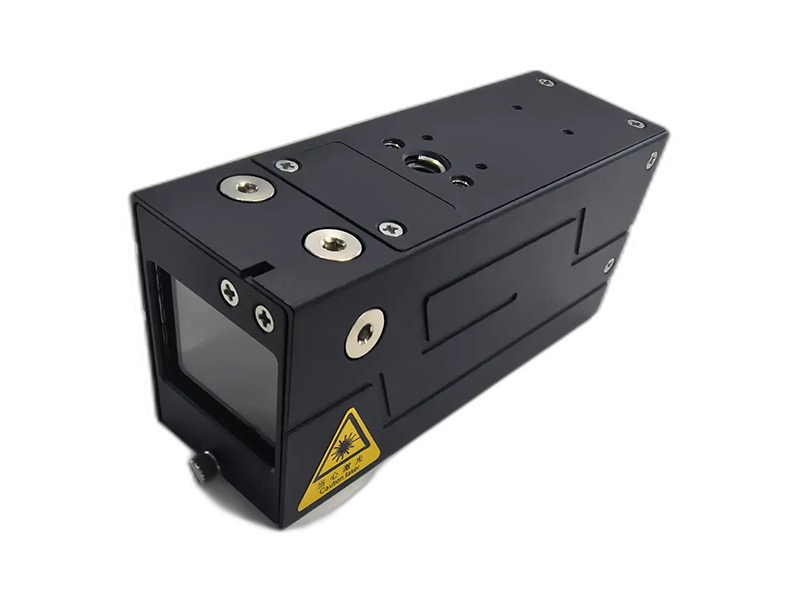

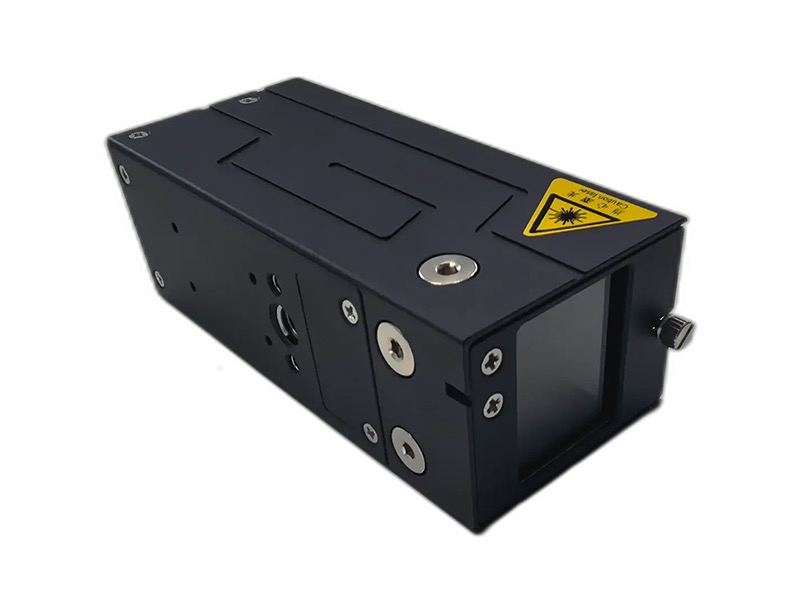

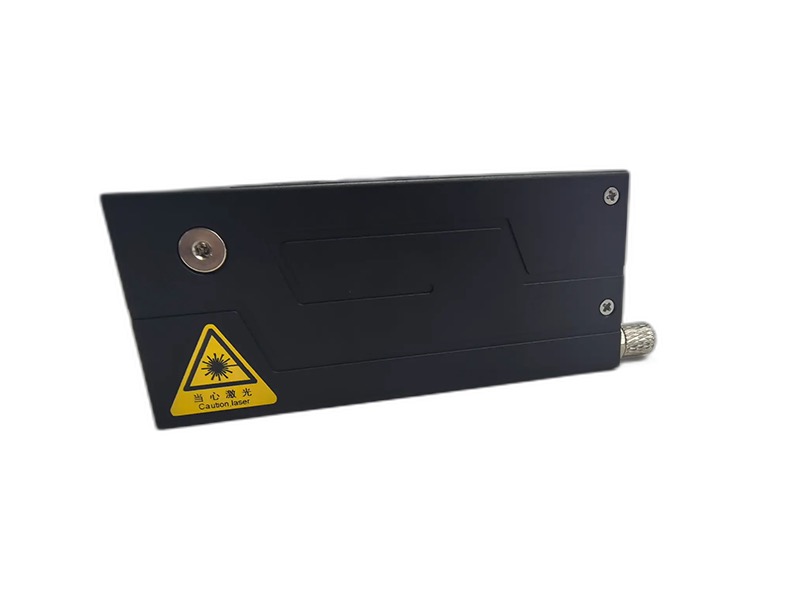

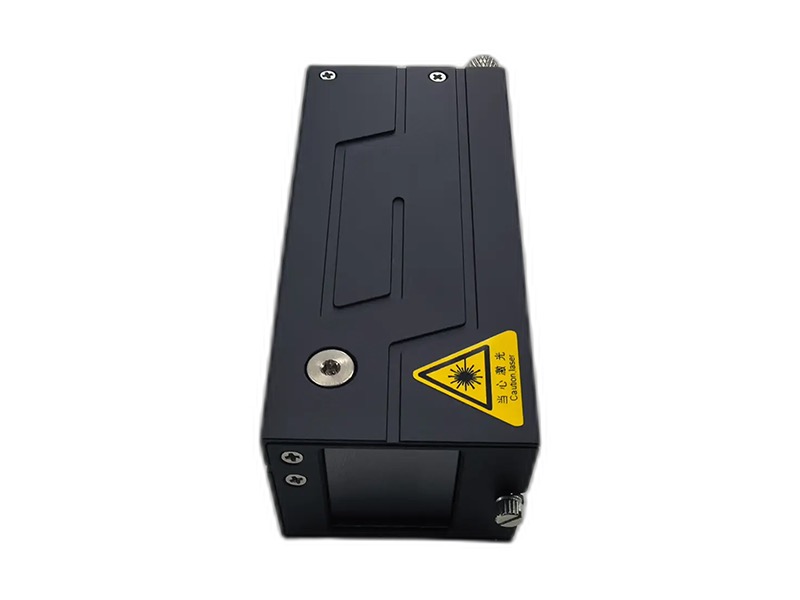

Product images for Arc Eye 3.0 Direct-View Welding Camera

Connection

Direct display

Control

Monitor control

Recording

Storage monitor option

Best for

Fast deployment and live process observation

Product video

Arc Eye 3.0 in the welding process

See direct-view welding observation in a live industrial process.

Technical data

Detailed product parameters.

Target Area1/3
Resolution85w
Maximum Frame Rate30fps
Dynamic RangeDigital Wide Dynamic
Signal-to-Noise Ratio48dB
Monochrome/ColorMonochrome
Working Distance170-350mm Adjustable (Standard 220mm)
Overall Dimension100mm*44mm*34mm
Weight245g
Operating Temperature0-60℃
Water CoolingSupported
Data InterfaceBNC Interface
Power Interface6-pin Connector
Operating Voltage12V
Current5A
